StreamRig: Exploiting Intra-Rig Geometry
for Streaming Multi-Camera Odometry

Yufei Wei¹Shuhao Ye¹Qi Wang²Xin Zheng¹Qing Huang¹Rong Xiong¹Yue Wang^1,∗

¹ Zhejiang University² South China University of Technology

∗ Corresponding author

Joint rig geometry. Compact causal state. Continuous odometry.
Frozen multi-view geometry becomes causal rig odometry, with only 74.6M trainable parameters.

Click the map to re-anchor

Loading point cloud…

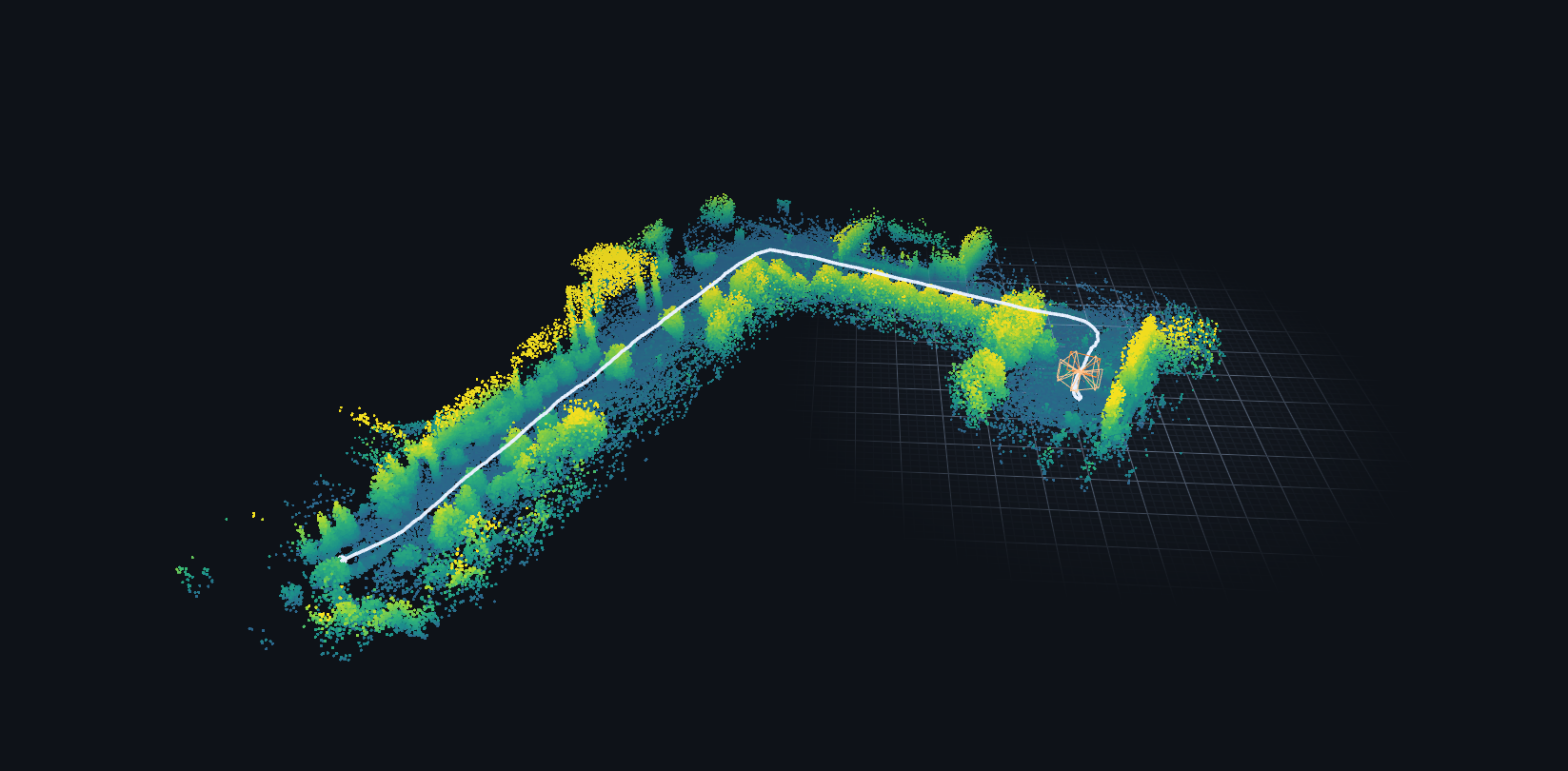

Five-camera map

Drag to rotate · Right-drag to pan · Scroll to zoom

Height above ground0–12 m

Current rig

Mapping cameras

Pose source

Point color

Point size

Frame 381 / 501

StreamRig trajectory Current rig & camera frusta Ground grid under current rig · 10 m Trajectory

Show synchronized input images +

Abstract

Mobile robots and vehicles carry synchronized multi-camera rigs, yet many streaming 3D foundation models are designed for monocular input, leaving efficient use of rig geometry a challenge. We present StreamRig, a freeze-and-stream framework that builds causal streaming odometry for calibrated rigs on a frozen multi-view 3D foundation model.

The frozen front-end jointly perceives synchronized views using rig calibration. A Rig-Resampler compresses their features, a CausalBridge applies causal attention with a key-value cache, and a lightweight head regresses rig poses. Periodic re-anchoring supports long sequences. Only these modules are trained—74.6M parameters—with relative poses as the sole supervision.

Two-stage training transfers group relocalization ability to causal rig odometry. We evaluate on NCLT, TartanGround, KITTI-360, and the ZJH humanoid-robot dataset, where real-world evaluation uses simulation-trained weights. Across all four datasets, StreamRig achieves lower translation and rotation drift than the evaluated non-oracle monocular streaming and rig-aware offline models.

Method

Perceive the rig jointly, compress its geometry, and carry it through a causal stream.

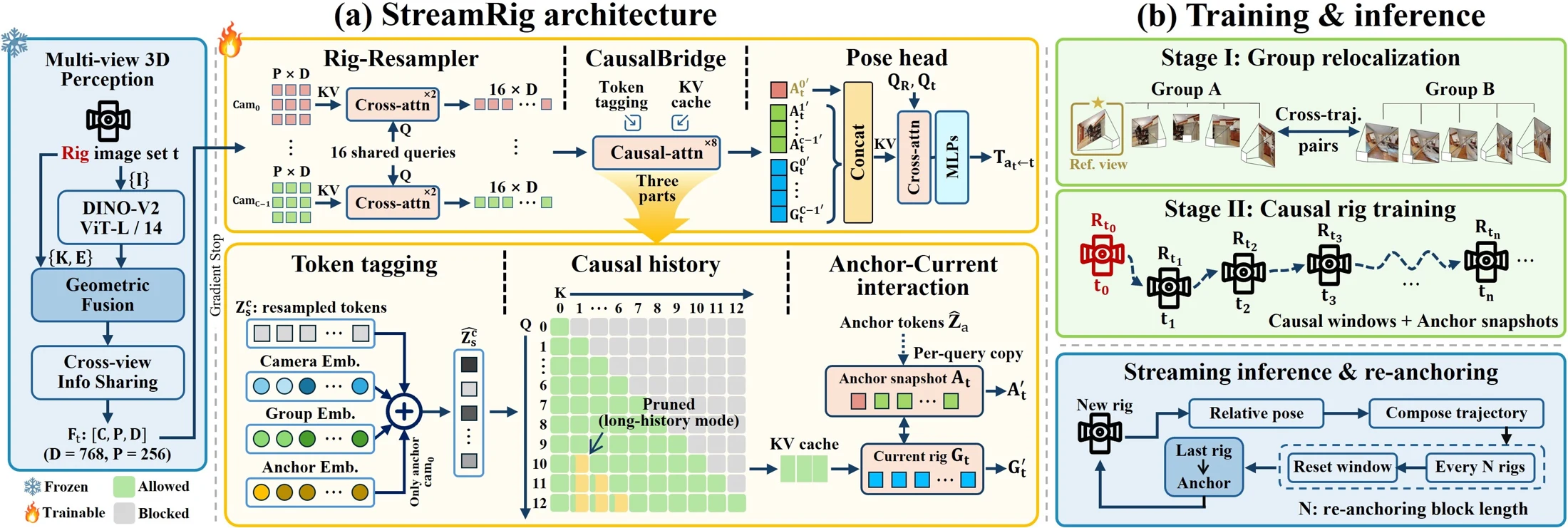

StreamRig architecture, causal attention, two-stage training, and re-anchoring — StreamRig consists of a frozen multi-view front-end, a Rig-Resampler, a CausalBridge, and a pose head. The trainable modules first learn group relocalization, then learn causal motion from rig windows.

Joint geometry

Every arriving rig is encoded once, with camera calibration supplied to the frozen multi-view model.

Compact causal state

Each camera contributes 16 latent tokens. Each query interacts with its own anchor snapshot and cached history.

Periodic re-anchoring

The last rig becomes the next anchor. Relative poses compose into a continuous trajectory with bounded active state.

Experimental Results

Four rigs spanning campus navigation, simulation, urban driving, and a humanoid robot.

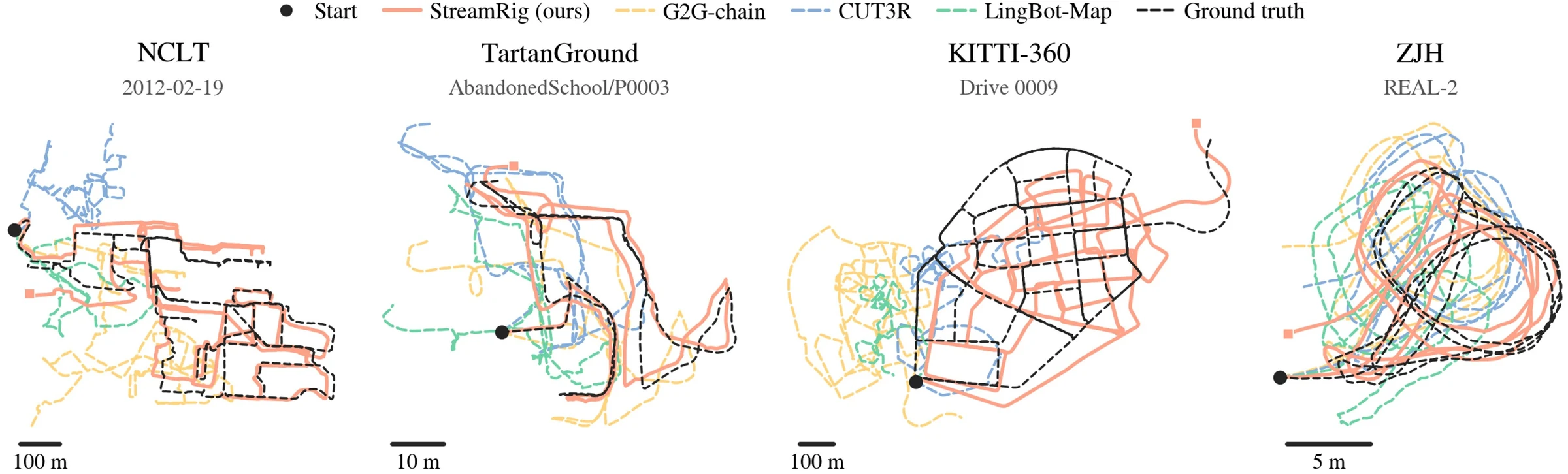

Example trajectories of StreamRig, G2G-chain, CUT3R and LingBot-Map against ground truth on NCLT, TartanGround, KITTI-360 and ZJH — Example trajectories on the four rigs.

Streaming odometry on four rigs

Table I. t_rel in percent, r_rel in degrees per 100 m, ATE in meters. Lower is better.
Method	Cameras	NCLT5-cam surround · 2 traj. / 12.29 km			TartanGround4×90° ring · 10 scenes / 12.60 km			KITTI-360stereo + 2 fisheye · 2 scenes / 13.63 km			ZJH (real robot)stereo + 2 oblique · 3 scenes / 0.36 km
Method	Cameras	t_rel	r_rel	ATE	t_rel	r_rel	ATE	t_rel	r_rel	ATE	t_rel	r_rel	ATE

best second best · t_rel (%) · r_rel (°/100 m) · ATE (m) · lower is better · grey: oracle with ground-truth relative pose

Ablations and analysis

Ablations, one factor at a time

Group	Variant	NCLT		TartanGround		ZJH (real)
Group	Variant	t_rel	r_rel	t_rel	r_rel	t_rel	r_rel

Design choices matter. Mixed windows, displacement-normalized translation, and the per-query anchor snapshot all reduce drift; removing group-relocalization pre-training increases translation drift by 4.6–14.9×.

Mono, stereo, and full rig on KITTI-360

Cameras	t_rel ↓	r_rel ↓	SE3 ↓	Sim3 ↓

More cameras, less drift. The stereo pair adds depth, and the two side cameras widen the view; the full rig is best on every metric.

Frozen front-end on NCLT

Front-end	t_rel (%) at N				Best
Front-end	6	12	24	48	t_rel	r_rel

A swappable front-end. Depth Anything 3 and π³X also work as frozen front-ends; MapAnything, which conditions on camera rays, exposes rig geometry most directly.

Re-anchoring distance and training horizon

Translation and rotation drift versus re-anchoring interval for three training horizons on NCLT, with training costs — Translation (filled) and rotation (open) drift on NCLT versus re-anchoring interval, for three training horizons.

Re-anchoring sets the operating point. Drift is lowest at intermediate intervals; longer training windows extend the usable range at higher cost.

Compute and memory budget per arrival

Method	Input	ms ↓	Thr. ↑	Mem ↓

A whole rig for less than one monocular frame. StreamRig processes five cameras in 26.2 ms with 2.6 GiB, faster than the fastest monocular streamer on a single frame.

Video

The method and synchronized trajectory comparisons across all four datasets.
